- Configuration
- N-CH
- V(DS)
- 30 V
- I(D)at Tc=25°C
- 90 A
- RDS(on)at 10V
- 2.2 mOhm
- Q(g)
- 30 nC
- 封装
- DPAK
- R(thJC)
- 1.1 K/W
- Logic level
- YES
- Mounting
- SMD
- Technology
- OptiMOS T2
- Fast bodydiode
- NO
- P(tot)
- AEC-Q(101)
- 包装
- REEL
- RoHS Status
- RoHS-conform
- P(tot)
- 136 W
- 生产商产品料号
- SP001226036
- 出口控制分类编号
- EAR99
- 海关税号
- 85412900000
- 国家或地区
- Malaysia
- 生产商交期
- 17 周
Summary of Features
- Optimized for synchronous rectification
- Ideal for high switching frequency
- Output capacitance reduction of up to 44%
- R DS(on) reduction of up to 43% from previous generation
Benefits
- Highest system efficiency
- Reduced switching and conduction losses
- Less paralleling required
- Increased power density
- Low voltage overshoot
Target Applications
- Telecom
- Server
- Solar
- Low voltage drives
- Light electric vehicles
- Adapter
| Follow-up article |
包装单位
单价 |
库存信息 | ||||
|---|---|---|---|---|---|---|
|

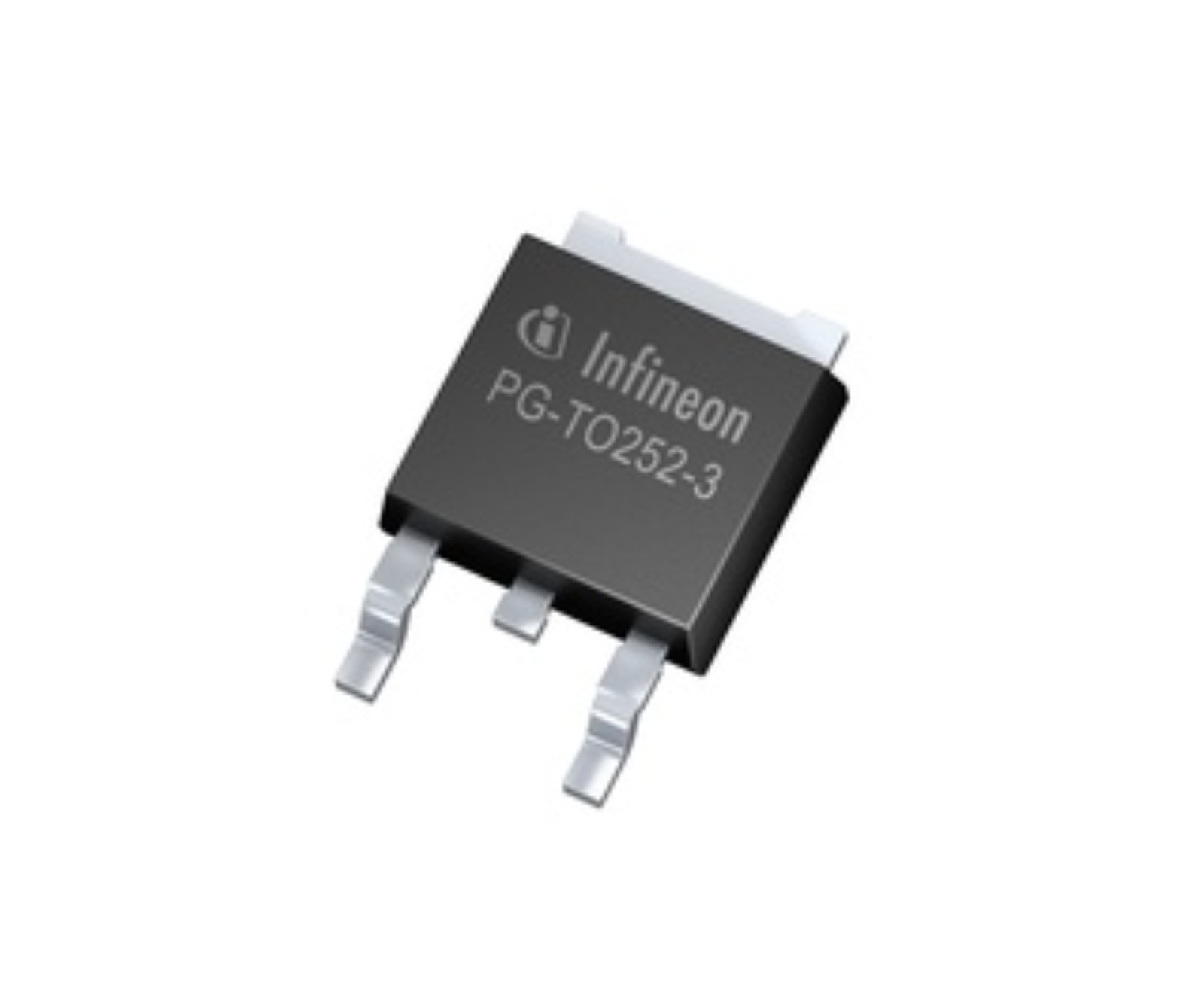

IPD90N03S4L02ATMA1MOSFET 30V 2.2mOHM AECQ TO252
产品料号:
TMOSP8995
封装:
DPAK
包装:
REEL
|
单价
0,8041 $
|
包装单位
2500
|
库存信息
|
价格、交期
查找替代产品
数据手册
| |
